1/2 Inch Overlay Soft-Close Concealed European Cabinet Hinge
1/2 Inch Overlay Soft-Close Concealed European Cabinet Hinge

1/2 Inch Overlay Soft-Close Concealed European Cabinet Hinge

SCHSA012
$3.00

Bulk Pricing Available – Apply Here

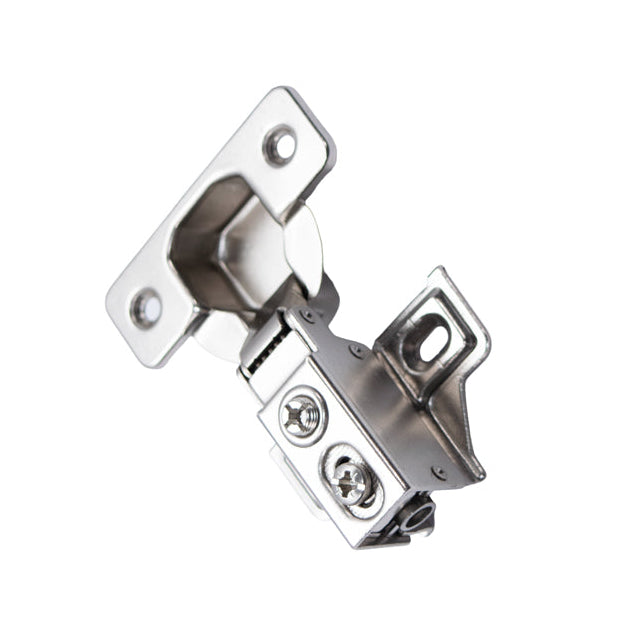

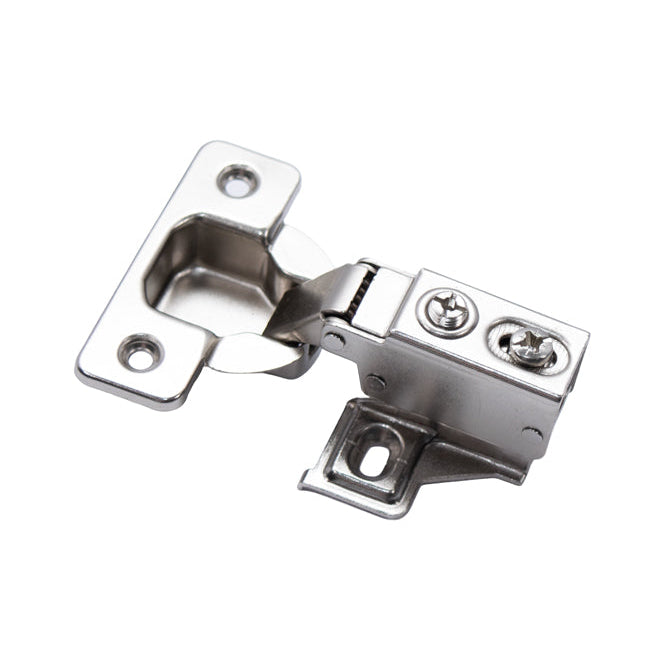

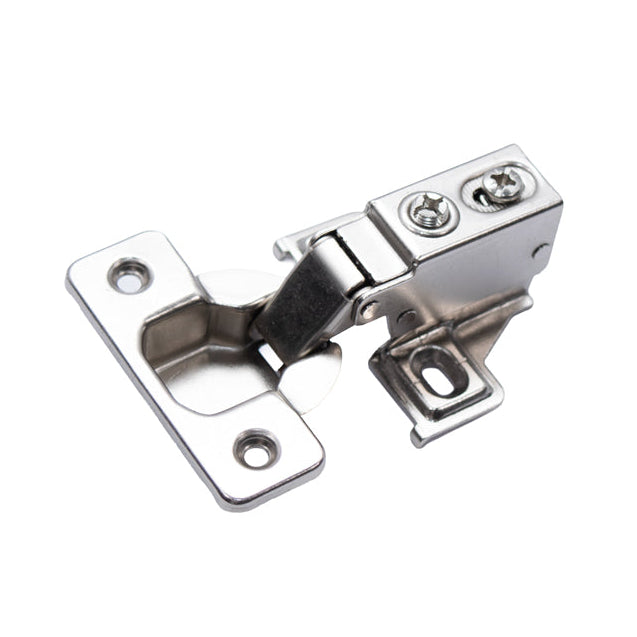

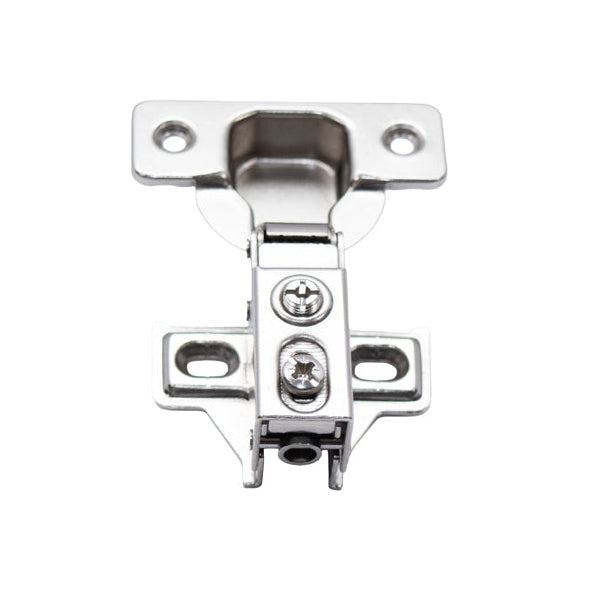

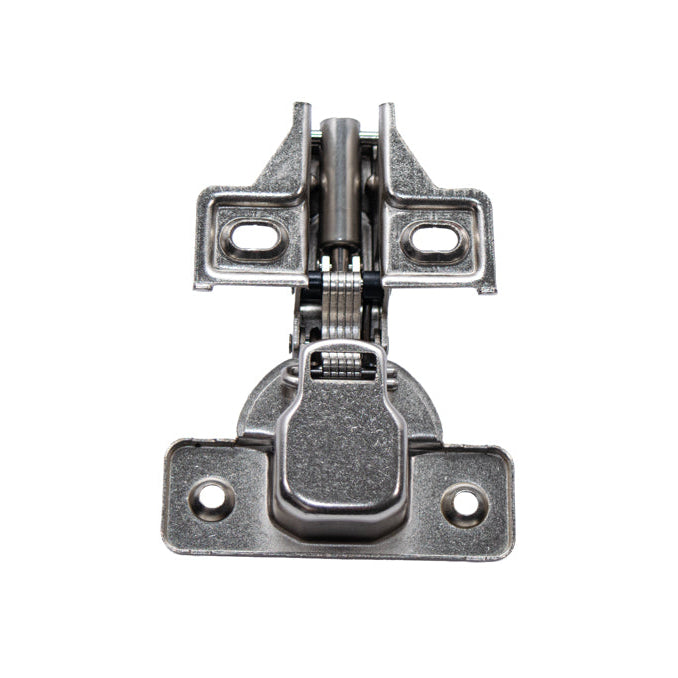

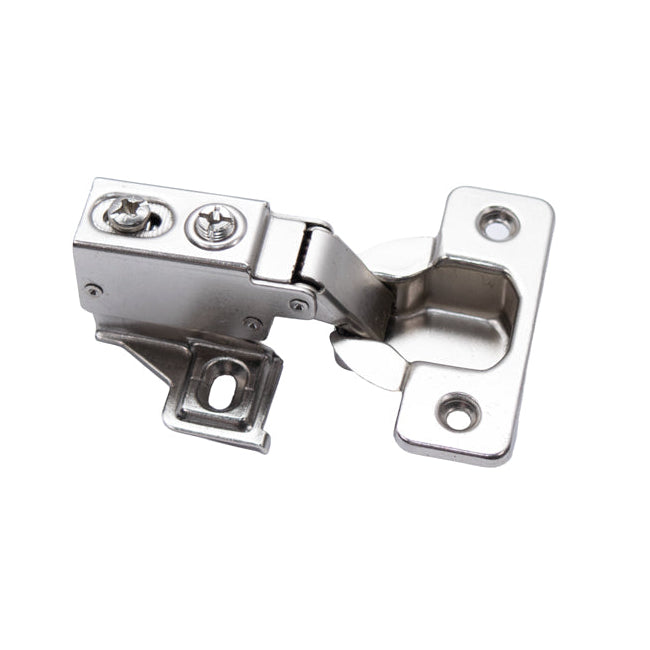

This 1/2" overlay soft-close short arm concealed hinge provides quiet, reliable door closure for face frame cabinets. A built-in hydraulic mechanism catches the cabinet door during the final inches of movement, preventing slamming and minimizing wear on cabinet frames.

The low-profile short arm saves space while offering full 3-way adjustment screws for fast, accurate door alignment during installation. Built for kitchen renovations, bathroom vanity builds, and hardware replacements, this European-style hinge delivers smooth performance with a completely hidden finish.

Specifications

Type Soft Closing
Cup Drilling Depth 10.5mm
Cup Diameter 35mm
Drilling Pattern 45mm
Opening Angle 105°
Door Thickness Range 14–26mm

Applications

Face Frame Kitchen Cabinets: standard American-style kitchen cabinet doors requiring a 1/2" frame coverage

Bathroom Vanities: moisture-exposed cabinet doors in residential or commercial bathrooms

Laundry & Utility Room Storage: heavy-use wall cabinets and base units

Built-In Furniture & Bookcases: custom shelving units with concealed storage doors

Cabinet Door Replacements & Retrofits: modernizing older face-frame cabinets with soft-close functionality without changing the existing face frame setup

Commercial & Office Millwork: breakroom cabinets, office storage units, and reception desk cabinetry

Key Features

1/2" Overlay Fit: Matches standard face frame cabinet dimensions requiring a half-inch door overlap.

Integrated Hydraulic Soft-Close: Built-in mechanism automatically catches the door to ensure smooth, silent closing.

Compact Short-Arm Design: Minimal profile conceals completely behind the door for clean cabinet lines.

3-Way Alignment Adjustability: Easy-access adjustment screws simplify height, depth, and side-to-side positioning.

Nickel-Plated Steel: Corrosion-resistant finish provides durability for high-use kitchen and bath applications.
